VIDEO SFP
Overview

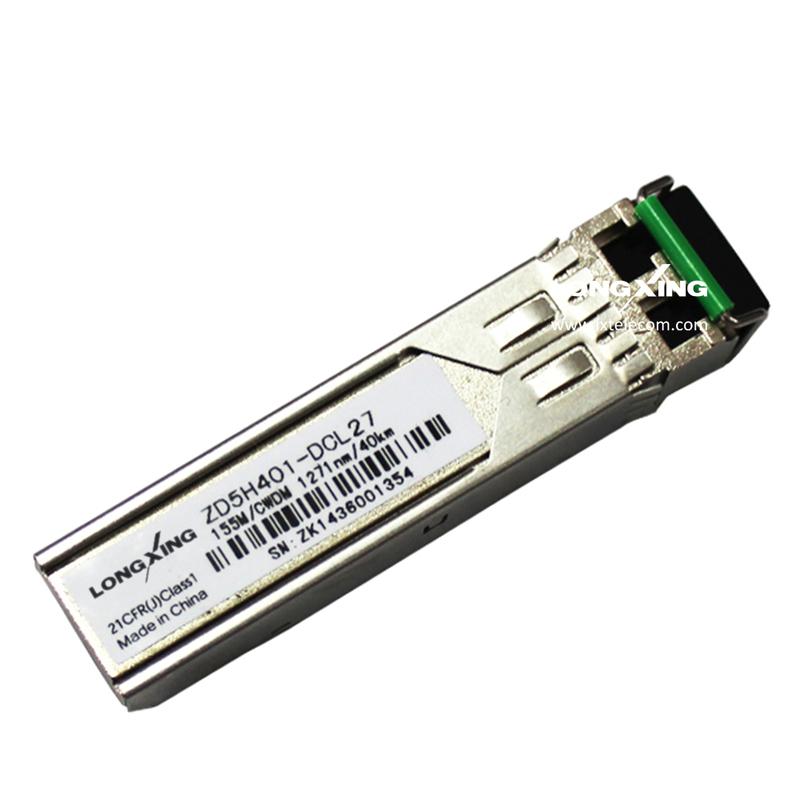

LongXing's Society of Motion Picture and Television Engineers (SMPTE) has standards for handling high definition video signals with pathological pattern. SMPTE’s standards currently call for 259M (SD-SDI), 344M (ED-SDI), 292M (HD-SDI) and 424M (3G-SDI). "SMPTE 424M" is a standard which expands upon SMPTE 259M, SMPTE 344M, and SMPTE 292M allowing for bit-rates of 2.970 Gbit/s and 2.970/1.001 Gbit/s over a single-link cable. Our HD SDI video optical transceivers are available in SFP packages and in different configurations.
Features
l Robust error free transmission of signals from 50Mbps to 3Gbps with up to 80km single-mode fiber
l MSA pin arrangement
l Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
l Hot-pluggable
l Diagnose and control via I2C interface
l Alarm reporting
l Single +3.3 V Power Supply
l Low Power Consumption
l RoHS Compliant
l Operating temperature range: 0°C to 70°C
l SMPTE 297-2006 compatible Support SMPTE 424M/292M/297M/259M
l Telcordia GR-468 compliant
| Shipping Information | |
| Package Contents | Distribution box, 1 unit; Keys for lock, 2 keys |
| Package Dimensions(W*H*D) | 190mm*50mm*120mm |
| Material | Carton box |
| Weight | 0.82 KG |
| Lead Time | 10-15 working days normally |
