XFP
Overview
LongXing's XFP transceiver is a high performance, cost effective modules for serial optical data communications applications specified for signal rates of 9.95 Gb/s to 11.3 Gb/s. It is fully compliant to XFP MSA Rev 4.5. The modules are designed for single mode fiber and operates at a nominal wavelength of 850/1310/1550 nm. The transmitter section incorporates uncooled directly modulated 1310 nm distributed feedback laser (DFB) or EML cooled laser 1550nm. The receiver section uses PIN photo detector for low dark current and excellent responsivity or APD high sensitivity receiver.
Features
l Supports 9.95Gb/s to 11.3Gb/s bit rates
l IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
l Hot-pluggable XFP footprint
l Maximum link length of 80km
l DFB or Temperature-stabilized EML Transmitter
l XFP Loopback Mode
l Duplex LC connector
l Low Power dissipation
l Superior Thermal and EMI integrity performance to support high port densities
l LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
l Built-in digital diagnostic functions, DDMI
l Temperature range -5°C to 70°C or Industrial Temperature range on request
l RoHS-6, CE, FDA, FCC, TUV, UL certificates
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| XFP | LXD6AM39-DCL | 9.95~10.3G | 850nm | VSCEL/PIN | <300m | LC | 0~70 | D | Ethernet, 10GFC |
| XFP | LXD6AM39-DIL | 9.95~11.1G | 850nm | VSCEL/PIN | <300m | LC | -40~85 | D | Ethernet, 10GFC |
| XFP | LXD6BM29-DCL | 9.95~11.1G | 1310nm | FP/PIN | <220m | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6B029-DCL | 9.95~11.1G | 1310nm | FP/PIN | 2km | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6D109-DCL | 9.95~11.1G | 1310nm | DFB/PIN | 10km | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6D109-DIL | 9.95~11.1G | 1310nm | DFB/PIN | 10km | LC | -40~85 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6D209-DCL | 9.95~11.1G | 1310nm | DFB/PIN | 20km | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6D209-DIL | 9.95~11.1G | 1310nm | DFB/PIN | 20km | LC | -40~85 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6D409-DCL | 9.95~11.1G | 1310nm | DFB/PIN | 40km | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6E409-DCL | 9.95~11.1G | 1550nm | EML/PIN | 40km | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6E409-DIL | 9.95~11.1G | 1550nm | EML/PIN | 40km | LC | -40~85 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6G809-DCL | 9.95~11.1G | 1550nm | EML/APD | 80km | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6G809-DIL | 9.95~11.1G | 1550nm | EML/APD | 80km | LC | -40~85 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6GA09-DCL | 9.95~11.1G | 1550nm | EML/APD | 100km | LC | 0~70 | D | Ethernet, SONET, 10GFC |

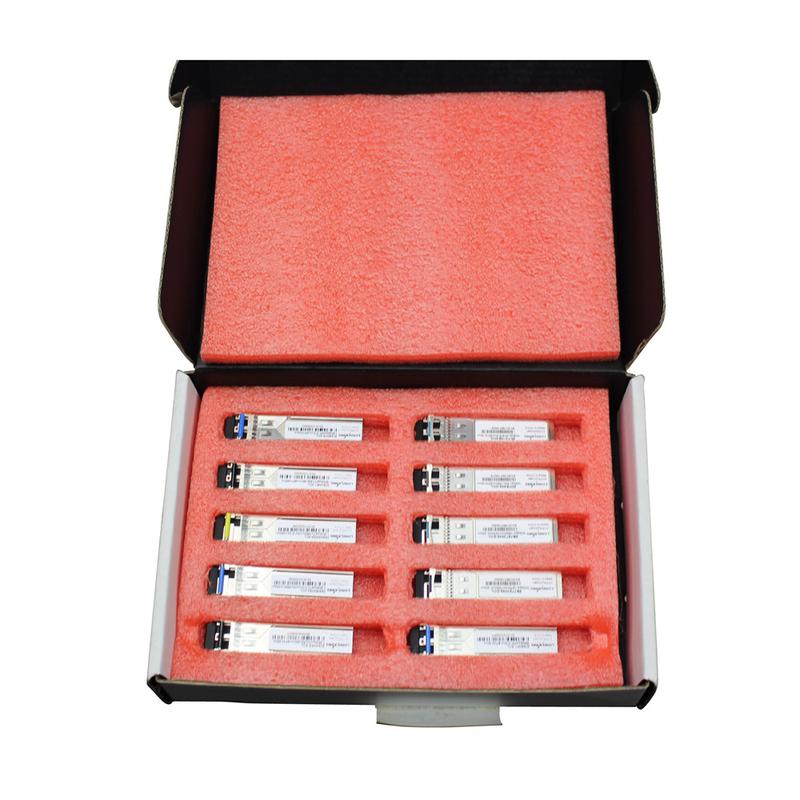

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
